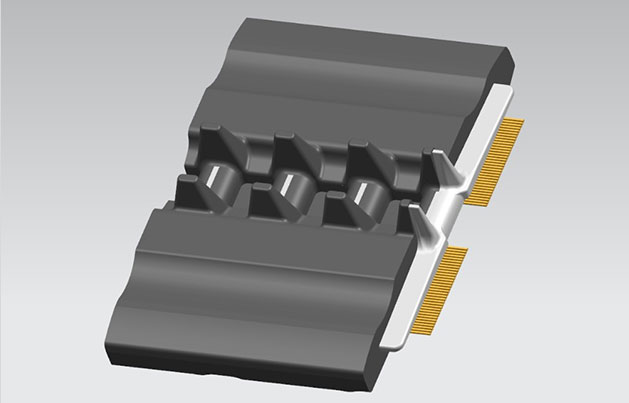

Normal type
1. Rubber track body
2. Sprocket perforation
3. Core iron
4. Grounding flower block
5. Steel wire
6. Skeleton layer / cord
7. Support surface
-

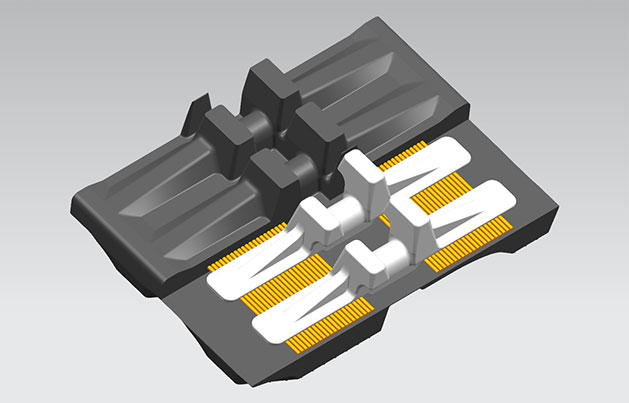

Exchangeable
1. Rubber track body
2. Sprocket perforation
3. Core iron
4. Grounding flower block
5. Steel wire
6. Skeleton layer / cord
7. Support surface
| Rubber track specification | ||||
| Width | X | Pitch Length | X |
Links |
| Width (mm) | Pitch Length (mm) | Links |
|
|
|
|
E.g： 230x72x43 Width = 230 mm；Pitch Length = 72 mm；Links = 43； Pitch Formula: P = π（ D + 2 x Z ） / n P：Pitch； D：Drive wheel bottom diameter； Z：Steel curtain height； n：Number of drive teeth； |
||
