Products

    EXCAVATOR TRACK
    WIDTH*PITCH LINK A B C D F PATTERN

    GUIDING

    130*72 29-40 23 64.5 28 28 15 AF1 A2
    150*60 32-40 22 64 22.5 24.5 15 AC A2
    150*72 29-40 23 64 23 23 15 AC A2
    170*60 30-40 19 57 22 22 13 CE A1
    180*60 30-40 23.5 64 21 21.5 15 AM A1
    180*72 31-43 25 68 29 29 15 BK A2
    180*72K 32-48 20 61 22 19.5 17 BB1 B2
    180*72KM 30-46 23 64 29 31 15   A2
    180*72YM 30-46 22.5 65 29 29 14   A2
    B180*72 31-43 23 66 30 29 15 BB1 B2
    H180*72 30-50 23 64 27 26 17 BK A2
    T180*72   23 64 29 28.5 15 AC A2
    V180*72K 30-50 20 61 22 19.5 17 BM A2
    190*60 30-40 23.5 64 21 21.5 14 AM A1
    190*72 31-41 21 68 27.5 26.5 15 BF A2
    200*72 34-47 23 76 28.5 26.5 18 BB1 A2
    200*72K 37-47 21 69 29.5 29 18 BM A2
    Y200*72 40-52 24 64 28.5 29.5 12 BK A2
    230*48 60-84 24 72 24 25 21 BI B1
    230*48A 60-84 26 69 22 24 17   B1
    230*48K 60-84 24 66 21 20 19 BI B2
    230*72 42-56 24 82 30 26 18 AF1 A2
    B230*72K 34-60 25 64 30 30 18 AB A2
    230*72K 42-56 20 69 29.5 28 16 BD A2
    V230*72K 42-56 20 69 29.5 28 16 BM A2
    W230*72   24 76 29 25 15   A2
    230*96 30-48 25 68 23.5 25.5 22 BE B1
    230*101 30-36 25 74 22.5 29 19 BO B1
    250*47K 84 23 70 24 20 22 BD B2
    250*48.5K 80-88 24 66 21 20 19 CA B2
    250*52.5 72-78 29 72 23 25 21 BI B1
    250*52.5N 72-78 30 82 25 18 20 BI B1
    250*52.5K 72-78 26 81 23 25 25 BA B2
    250*72 47-57 24 82 30 26 18 AF1 A2
    B250*72 34-60 23 64 29 22 10 CI A2
    B250*72B 34-60 23 78 29 26 16 AB B2
    250*96 35-38 25 70 20 19 22 BB1 B2
    250*109 35-38 40 89 24.5 14 20 CG B1
    260*52.5 74-80 40 88 23 22 23 BI B1
    260*55.5K 74-80 31 80 21.5 27 24 CA B2
    Y260*96 38-41 25 68 23 25.5 22 AB B1
    V265*72 34-60 23 78 30 26 19.5 BM A2
    260*109 35-39 30 84 24 29 15 AB B1
    E280*52.5K 70-88 29 84 27 26 22 BI B2
    280*72 45-64 25 78 29.5 26 22 AL A2
    V280*72   25 75 29.5 26 22   A2
    Y280*106K 35-42 30 80 27.5 28 20 AB B2
    300*52.5N 72-98 30 82 25 18 20 BI B1
    300*52.5W 72-92 43 96 22 23 22 BE B1
    300*52.5K 70-88 29 84 27 26 22 BI B2
    300*52.5KW 72-92 40 92 25 24 22 BI C1
    E300*52.5K 70-88 29 84 27 26 22 BI B2
    KB300*52.5 72-92 40 90 24.5 24.5 22 BI C1
    KB300*52.5N 72-98 30 80 23 20 25 BI B1
    JD300*52.5N 72-98 30 80 23.5 22 22 BI B1
    300*53K 80-96 31 88 25 19.5 21 BI B2
    300*55 70-88 29 86 25.5 27.5 23 BI B1
    300*55YM 70-88 30 92 21 27.5 25 BI B2
    300*55.5K 76-82 31 82 22 27 21.5 CA B2
    300*71K 72-76 42 106 23 24 40 BD B2
    300*72 36-40 23 75 40 34 18 BK A2
    BA300*72 36-46 26 76 29 27 19 AF1 A2
    300*109N 35-42 29 82 27 28 25 BE B1
    300*109W 35-44 38 90 26 29 24 BB1 B1
    K300*109 37-41 27 85 23.5 27.5 20 AB B2
    300*109WK 35-42 40 90 24.5 14 23 CG B1
    320*52.5 72-98 30 83 23.5 18 21 BI B1
    320*54 70-84 29 80 23 21 20 AB B1
    B320*55K 70-88 30 82 25 30 23 BE B2
    Y320*106K 39-43 31 80 26 27 24 AB B2
    350*52.5 70-92 40 94 22.5 19 30.5 BE B1
    E350*52.5K 70-88 29 84 27 26 22 BI B2
    350*54.5K 80-86 40 92 23.5 22.5 23 AD B2
    B350*55K 70-88 30 82 25 30 23 BE B2
    350*56 80-86 39 89 25.5 16.5 20.5 BC B1
    350*72.5KM 62-76 40 93 23.5 25 19 BI B2
    350*73 64-78 48 109 23.5 24 25   B2
    350*75.5K 74 37 98 24.5 25 25 CA C2
    350*108 40-46 40 90 24.5 14 25 CG B1
    350*109 41-44 40 92 26 20 25 BO B1
    Y370*107K 39-41 38 94 25.5 28 23.5 AB B2
    400*72.5N 70-80 38 100 26 24 25 AF3 B1
    400*72.5W 68-92 51 108 26 24 25 BI B1
    Y400*72.5K 72-74 28 86 30 24.5 25 AF3 C2
    KB400*72.5K 68-76 37 94 24 26 23.5 BA B2
    400*72.5KW 68-92 46 112 24 23.5 25 BI B2
    400*73 64-78 48 109 23.5 24 25   B2
    400*74 68-76 38 100 25.5 29.5 24 BH2 B1
    400*75.5K 74 39 100 25 26 25 CA C2
    Y400*107K 46 38 89 27 25 25 AB C2
    400*78   52 114 25 39 24 BD
    K400*142 36-37 27 87 34 27 29 CF C2
    400*144 36-41 47 98 27 11 30 CF B1
    Y400*144K 36-41 35 126 29.5 26 25 BE B2
    450*71 76-88 42.5 115 29.5 17 30 BE B1
    DW450*71 76-88 44 114 31 27 25 BD B1
    450*73.5 76-84 42 118 31 34 28 CG B1
    450*76 80-84 48 122 30.5 31.5 26 BI B1
    450*81N 72-80 42 117 26 24 27 BE B1
    450*81W 72-78 58 140 29 32 30 BI B1
    KB450*81.5 72-80 42 110 31.5 27.5 26 BD B1
    K450*83.5 72-74 42 112 24.5 25 28 BI B1
    Y450*83.5K 72-74 38 113 24 27 26 CA B2
    K450*163 38 38 114 27 28 30 AB B2
    485*92W 74 62 142 34 33 30 BE B2
    K500*71 72-76 41 106 23 24 42 BE B2
    500*92 72-84 48 130 27 26 29 BI B1
    500*92W 78-84 64 155 32.5 35.5 33 BI B1
    K500*146 35 40tt 106 26.5 24.5 50 BB1 A2





    DUMPER TRACK
    WIDTH*PITCH LINK A B C D F PATTERN GUIDING
    300*84N 42-56 22 60 31.5 29 28 AP A2
    320*90 52-56 32 86 50 35 28 AA A2
    U320*90 56-76 37 85 47 32 29 AA A2
    320*100 38-54 29 74 30 25 23 BN A2
    320*100W 37-65 38 80 34 25 22 CD A2
    350*100 46-60 45 112 45 48 27 AA A2
    U380*90 56-76 34 85 48 34 30 AA A2
    420*100 50-58 49 99 50.5 36 25 AA A2
    450*100 62-76 45 112 57 54 45 AA A2
    450*110 74 45 120 64 55 21 AL A2
    500*90 76-82 42 94 51 36 30 AA A2
    500*100 71 45 112 57 54 45 AL A2
    600*100 76-80 44 113 60 49 36 AL A2
    600*125 56-64 43 124 76 61 30 AL A2
    650*110YM 88 48 114 76 60 34 AL A2
    650*120 78 44 130 91 69 38 AL A2
    650*125 80 56 170 90 68 44 AL A2
    700*100 80-98 48 120 75 59 40 AL A2
    T700*100 80-98 48 120 75 56 40 AL A2
    700*125 56-64 55 144 68 56 32 AL A2
    750*150 66 62 176 94 68 38 AL A2
    800*125 80 62 175 95 88 32 AL A2
    800*150   62 167 92 62 45 AL A2
    800*150YM 67-70 76 158 98 68 40 BC A2
    M800*150 66-68 60 148 73 71 35 AL A2
    K800*150 67-70 80 189 108 78 35 AL A2
    900*150 68-80 80 200 101 66 48 AL A2
    1000*150 86 78 210 101 58 37 AL A2





    LOADER TRACK
    SIZE WIDTH*PITCH LINK A B C D F PATTERN GUIDING
    B180*72A 31-43 23 63 29 22 10 AE A2
    B250*72A 34-60 23 63 29 22 10 AE A2
    B250*72CT 34-60 29 76 38 30 21   A2
    E250*72 34-60 29 76 36 27 22.5 CH A2
    B300*84 48-52 48 95 48 36 25 AE A2
    T300*86K 48-52 36 84 43.5 31.5 22 AA A2
    B320*84 50-53 46 96 48 34 25 AE A2
    T320*86K 48-52 36 84 43.5 31.5 25 CH A2
    B320*86 49-52 48 95 48 36 25 AE A2
    B400*86 52-55 48 97 48 36 25 AE A2
    T400*86K   38 84 44 32.5 29 AE A2
    B450*84 53-56 48 97 48 36 25 AE A2
    B450*86 52-55 48 97 48 36 25 AE A2
    T450*100K 48-65 50 104 47 44 30 CH A2





    GARDEN MACHINE TRACK
    WIDTH*PITCH*LINK A B C D
    6”*3.5”*28 149 63.5 31 14
    10”*3.5”*28 250 63.5 31 14
    L10”*3.5”*51 250 52 42 14





    ASV TRACK
    SIZE WIDTH*PITCH*LINK A B C D E F G
    11”*4”*37 280 26 46 100 0
    15”4”*42 380 24 45 100 64 0 0
    18”*4”*51 460 24 46 100 100 0 0
    18”4”*56 460 24 46 100 100 0 0
    18”*4”C*51 460 25 46 94.5 71.5 71.5 0
    20”*4”*51 508 25 46.5 94.5 71.75 71.75 0





    AGRICULTURE TRACK

    WIDTH/PITCH/LINK

    WIDTH/PITCH/LINK

    WIDTH/PITCH/LINK

    180/84W/27

    400/90DC/47

    C400/90/50

    180/84W/28

    400/90DC/48

    D400/90/46

    180/84W/29

    400/90P/43

    D400/90/48

    180/84W/30

    425/90/42

    D400/90/50

    280/79/31

    450/90/47

    D400/90/50

    280/79/32

    450/90/50

    D450/90/48

    280/79/34

    450/90/56

    D450/90/51

    280/79/35

    450/90BS/60

    D450/90G/51

    280/79/37

    450/90BS/61

    D500/90/53

    280/79/38

    450/90DC/51

    D500/90/56

    280/90/38

    450/90N/56

    D500/90P/56

    280/90/46

    500/100/57

    D550/90P/56

    300/84/34

    500/90/51

    D550/90P/56

    300/84YCL/44

    500/90AW/51

    DC450/90/53

    350/90/42

    500/90AW/54

    DC500/90/51

    350/90/46

    500/90DC/53

    DC500/90/55

    350/90/48

    575/93/58

    DC500/90/56

    350/90/60

    600/90/54

    DC550/90/56

    400/84YCL/44

    C350/90/40

    DC550/90/58

    400/90/43

    C350/90H/48

    YM500/90/51

    400/90/43

    C400/90/46

    YM500/90/52



    JOHN DEERE RUBBER TRACK

    Size

    Model Number

    18"

    8320RT/8370RT/8335RT/8360RT

    25"

    8320RT/8370RT/8335RT/8360RT

    30"

    8310T/8320RT/9520RT/9570RT

    36"

    9000T/9020T/9030T








    SNOWMOBILE TRACK

    Size

    WIDTH*PITCH

    Width

    (mm)

    Pitch

    (mm)

    Body
    Thickness

    (mm)

    Link
    Available

    Tread Height
    mm

    Inner Teeth Heigth
    (mm)

    Center
    Distance
    mm

    170*50

    170

    50

    5

    25-28

    18

    15

    70

    190*64

    190

    64

    5

    24-28

    18

    15



    254*64

    254

    64

    5

    25-35

    18

    15

    141

    380*64

    380

    64

    5

    48-60

    22

    16

    225

    508*64

    508

    64

    5

    48-60

    33

    16

    391

    310*50.5

    310

    50.5

    5

    44-52

    27

    13.5

    185

    380*50.5

    380

    50.5

    5

    41-45

    22

    13.5

    225

    380*50.5

    380

    50.5

    5

    48-56

    24



    225

    500*50.5

    500

    50.5

    5.5

    42-58

    20



    343

    305*103.7

    305

    103.7

    5

    22-

    11



    171

    165*64.5

    165

    64.5

    6.5

    36-40

    24

    24



    255*72

    255

    72

    9

    24-27

    21

    21



    360*92

    360

    92

    16.5

    28-40

    30

    30






    PAVER TRACK

    WIDTH*PITCH*LINK

    A

    B

    C

    D

    356*152.4*46

    356

    140

    64

    22

    483*152.4*52

    483

    140

    64

    22

    460*225*36

    456

    120

    100

    40






    RUBBER PAD

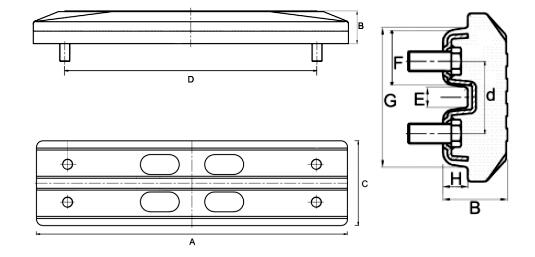

    BOLT ON

    MODEL

    A

    B

    C

    Bolt

    D*d

    E

    F

    G

    H

    PY230W

    225

    38

    70

    M12

    150



    50

    56

    16.5

    PY230SA

    230

    32

    63

    M12

    150



    44

    52

    15

    PY230SB

    230

    32

    70

    M12

    150



    50

    55

    16

    PY250W

    245

    38

    70

    M12

    200



    50

    56

    16.5

    PYRT250

    240

    35

    70

    M12

    200



    50

    56

    16.5

    PY250S

    250

    34

    70

    M12

    200



    50

    56

    16.5

    PY300FH

    300

    42

    68

    M12

    200



    48

    56

    16

    PY300SA

    299

    38

    69

    M12

    200



    46

    55

    16

    PY300SB

    302

    31

    64

    M12

    200



    48

    53

    14

    PY300W

    295

    38

    70

    M12

    200



    50

    56

    16.5

    PYRT300

    290

    35

    70

    M12

    200



    50

    56

    16.5

    PY300S

    300

    34

    70

    M12

    200



    50

    56

    16.5

    PY350A

    350

    38

    70

    M12

    200



    46

    52

    16

    PY350B

    350

    37

    112

    M12

    250*46

    9

    35.5

    91

    14(11)

    PY350SA

    349

    38

    69

    M12

    199



    47

    54

    16

    PY350SB

    350

    40

    73

    M12

    250



    47

    54

    16

    PY350SC

    350

    37

    112

    M12

    250*46

    9

    35.5

    88

    14

    PY350SL

    340

    42

    105

    M12

    290*46

    8.5

    34.5

    88.5

    14

    PY350SR

    340

    42

    105

    M12

    290*46

    8.5

    34.5

    88.5

    14

    PY350LR

    350

    36

    105

    M12

    290*46

    8.5

    34.5

    88.5

    14

    PY400SA

    400

    46

    104

    M14

    300*46.5

    8

    31

    83

    17.5

    PY400SB

    400

    44

    108

    M14

    300*46

    13

    24

    85

    18

    PY400SC

    400

    41

    105

    M14

    300*45

    9

    35(34)

    88.5

    15(12)

    PY400SL

    390

    39

    106

    M14

    300*46

    9

    36.5

    92

    14

    PY400SR

    390

    39

    106

    M14

    300*46

    9

    36.5

    92

    14

    PY400LR

    398

    39

    109

    M14

    300*46

    9

    36.5

    92

    14(11)

    PY400W

    390

    40

    110

    M14

    300*46

    8.7

    36

    91.4

    15(11)

    PYRT400

    386

    37

    110

    M14

    300*46

    8.7

    36

    91.4

    15(11)

    PY400S

    400

    36

    110



    300*46

    8.7

    36

    91.4

    15(11)

    PY450SA

    447

    45

    103



    300*46

    8

    31

    83

    17

    PY450SB

    445

    50

    124



    350*58

    10

    36.5

    91

    21

    PY450SC

    449

    42

    105



    350*45

    8.5

    35(31)

    90

    14(12)

    PY450SD

    444

    46

    123



    350*58

    11

    38.5

    103

    19.5

    PY450SE

    450

    45

    123



    350*53

    17

    33.75

    89

    18

    PY450SF

    450

    46

    107.5



    350*52

    15

    41(45)

    92.5

    18.5

    PY450SL

    450

    46

    128



    350*58

    11.5

    41(45)

    107

    20

    PY450SR

    450

    46

    128



    350*58

    11.5

    41(45)

    107

    20

    PY450LR

    450

    42

    128



    350*58

    11.5

    41(45)

    107

    20

    PY450S

    450

    48

    127



    350*58

    10

    42(44.5)

    109

    19

    PY500SA

    492

    60

    132

    M16

    400*58

    11

    34

    103

    26

    PY500SC

    490

    51

    135

    M16

    408*60

    12

    43.25

    112

    20.5

    PY500SD

    490

    57

    135

    M16

    400*60.3

    13

    44(45)

    117

    20

    PY500W

    490

    67

    135

    M16

    400*60.3

    13

    44(45)

    117

    20

    PYRT500

    490

    60

    135

    M16

    400*60.3

    13

    44(45)

    117

    19

    PY500S

    500

    52

    135

    M16

    400*60.3

    16

    42

    112

    20

    PY600B5

    600

    52

    135

    M20

    500*60

    16

    42

    117

    19

    PY600SA

    594

    57.5

    124

    M20

    400*57

    14

    38

    102

    24

    PY600SB

    600

    70

    140

    M20

    500*65

    13

    46(43.5)118

    118

    20

    PY600W

    590

    80

    150

    M20

    400*69

    15

    48

    124

    26

    PY600W

    600

    69

    150

    M20

    400*69

    15

    48

    124

    26

    PY700SA

    694

    57.5

    124



    500*57

    14

    38

    102

    24

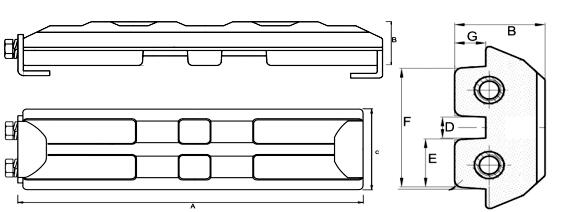

    CLIP ON

    MODEL

    A

    B

    C

    D

    E

    F

    G

    PY200F

    206

    50

    70



    46

    50

    17.5

    PY250F

    256

    50

    70



    46

    49

    17

    PY260F

    260

    50

    70



    46

    49

    17

    PY270F

    276

    50

    70



    44

    48

    17

    PY280F

    286

    50

    70



    44

    48

    17

    PY300F

    306

    50

    70



    42

    49

    18

    PY300FE

    306

    50

    70



    49

    55

    17

    PY300HD

    306

    55

    108

    13

    33

    81

    18

    PY400HD

    406

    55

    108

    14

    32

    82

    19

    PY400HD-W

    406

    55

    108

    15

    33

    86

    18

    PY400HK

    400

    70

    130

    12

    33

    104

    26

    PY400VA

    400

    62

    118

    18

    33.5

    97

    18

    PY450HD

    456

    56

    109

    13

    31

    81.5

    20

    PY450HD-W

    457

    55

    108

    15

    33

    86

    18

    PY450E

    450

    56

    133

    16

    40.5

    103

    21

    PY450G

    450

    74

    142

    18

    33

    104

    23

    PY450K

    450

    61

    106

    16

    30

    88

    18.5

    PY500A

    500

    70

    135

    15

    35

    104

    20

    PY500B

    500

    70

    135

    18

    36

    102

    26

    PY500G

    502

    74

    142

    16

    35

    104

    23

    PY500GH

    502

    82

    142

    19

    33.5

    104

    25

    PY500HD

    504

    67

    130

    12

    33

    104

    26

    PY500HD-W

    506

    59

    108

    15

    33

    86

    18

    PY500K

    504

    88

    162

    19

    43.5

    120

    26

    PY600A

    600

    85

    153

    16

    47

    122

    26

    PY600B

    600

    72

    130

    18

    36

    102

    26

    PY600C

    600

    91

    172

    21

    38

    131

    32

    PY600G

    604

    74

    140

    15

    35

    100

    20

    PY600HD

    600

    70

    130

    12

    33

    104

    26

    PY600K

    600

    85

    164

    19

    40.5

    113

    26

    PY700C

    700

    62

    134

    14

    42

    114

    18

    PY700D

    700

    85

    152

    25.5

    38.5

    102.5

    25

    PY700G

    700

    74

    140

    18.5

    34

    100

    27

    PY700N

    700

    74

    142

    16

    47

    119

    26.5

    PY700HD

    700

    70

    130

    12

    33

    104

    26

    PY800SD10

    800

    85

    142

    17

    38.5(43)

    112.5

    26

    PY800SD20

    800

    95

    163

    23

    47

    131

    36

    PY800-336D

    800

    75

    162

    29

    43

    125

    27.5

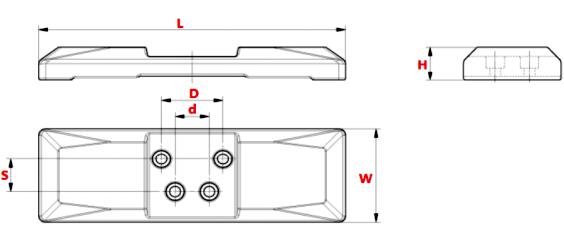

    CHAIN ON

    MODEL

    D

    d

    S

    Bolt

    L

    W

    H

    PYCT230

    150





    M12

    230

    80

    32

    PYCT300

    144

    116

    22

    M12

    300

    95

    45

    PYCT380

    100

    73

    43.5

    M12

    380

    125

    52

    PYCT400

    94

    64

    46

    M12

    400

    125

    50

    PYCT400A

    100

    73

    43.5

    M12

    400

    125

    52

    PYCT400B

    104

    80

    46

    M12

    400

    125

    52

    PYCT400C

    94

    64

    46

    M12

    398

    124

    69

    PYCT400D

    110

    80

    46

    M12

    400

    125

    66

    PYCT450

    89

    73

    57

    M14

    450

    145

    50

    PYCT450A

    90

    90

    55

    M14

    450

    145

    54

    PYCT450B

    99

    72

    43.6

    M12

    450

    130

    54

    PYCT450C

    76

    106

    46

    M12

    450

    145

    54

    PYCT450D

    90

    90

    46.3

    M14

    450

    145

    51

    PYCT450E

    73

    73

    57

    M14

    450

    146

    56

    PYCT450F

    89

    73

    57

    M14

    450

    145

    77

    PYCT450FN

    89

    73

    57

    M14

    450

    130

    74

    PYCT450G

    83

    83

    52

    M12

    450

    130

    54

    PYCT450H

    86

    86

    52

    M12

    450

    145

    54

    PYCT450J

    90

    90

    55

    M14

    450

    130

    74

    PYCT500

    102

    86

    57

    M16

    500

    165

    63

    PYCT500A

    108

    108

    60.5

    M16

    500

    165

    69

    PYCT500AN

    108

    108

    60.5

    M16

    500

    156

    86

    PYCT500B

    102

    86

    57

    M16

    500

    164

    100

    PYCT500C

    160

    124

    62

    M16

    500

    165

    69

    PYCT600A

    160

    124

    62

    M20

    600

    178

    72

    PYCT600C

    108

    108

    60

    M16

    600

    162

    60

    PYCT600D

    156

    119

    69

    M20

    600

    178

    72

    PYCT600E

    90

    75

    55

    M20

    600

    145

    50

    PYCT600F

    89

    73

    57

    M14

    600

    144

    95
